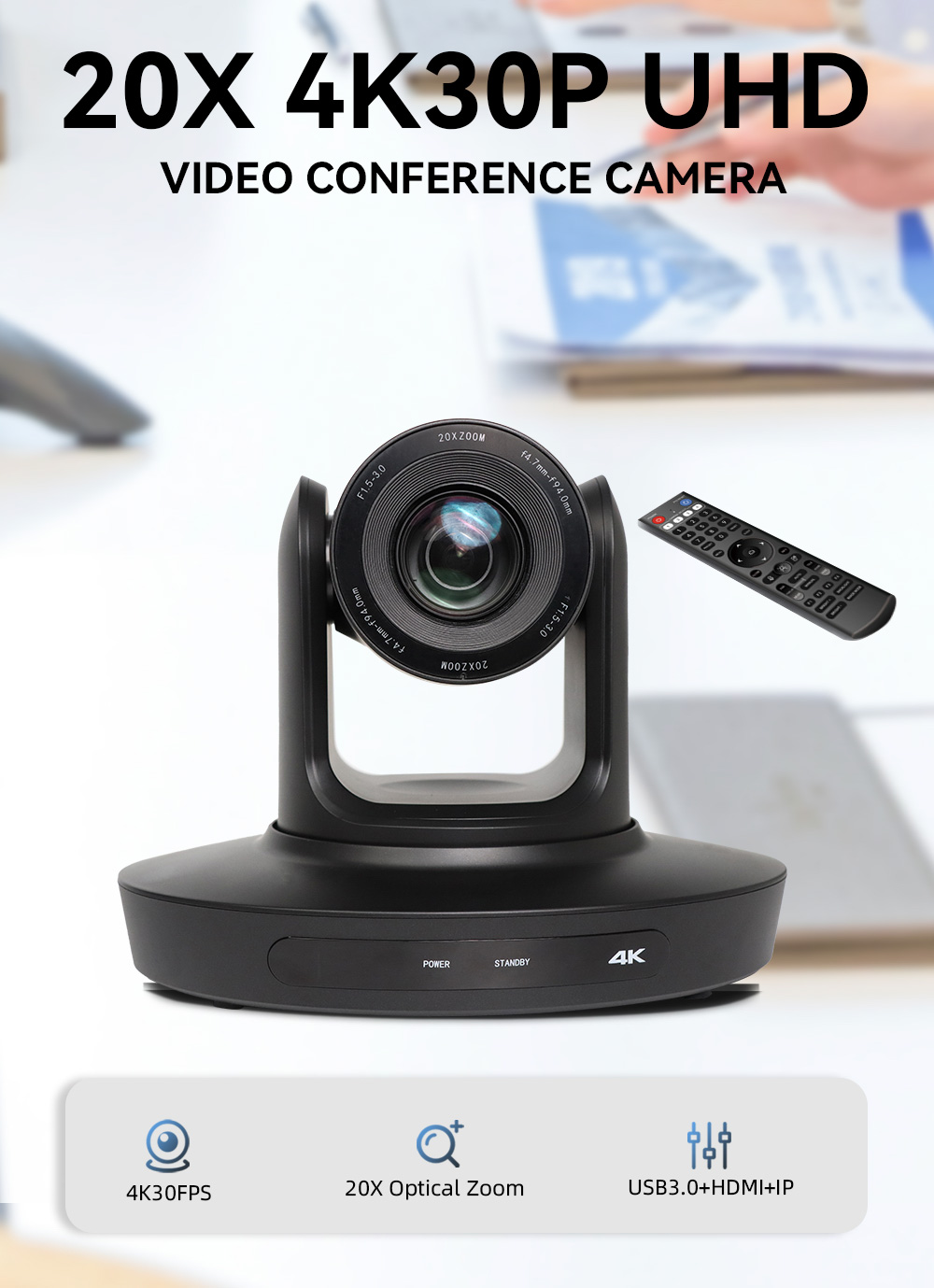

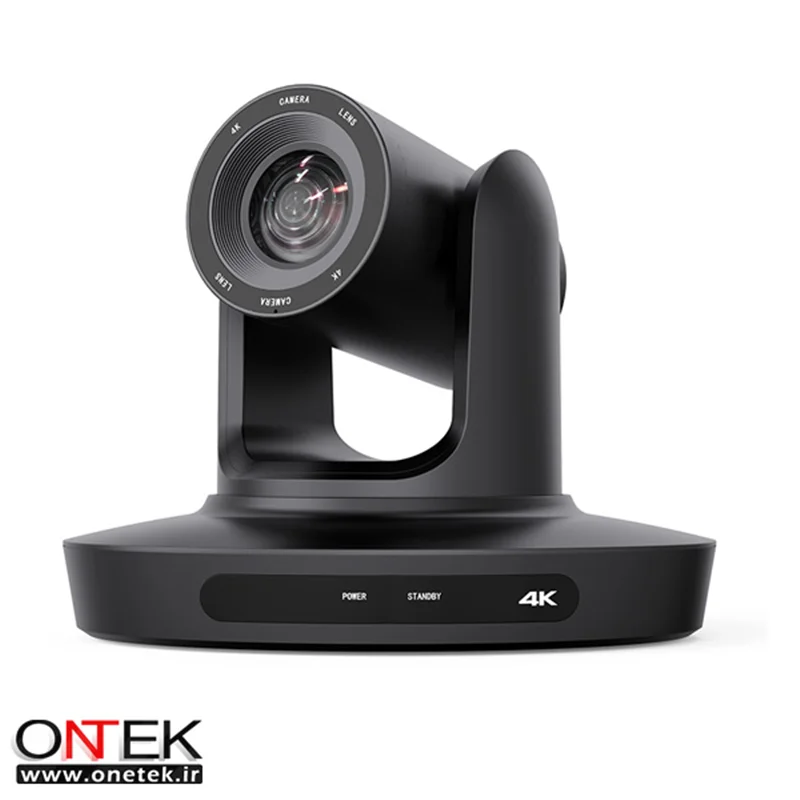

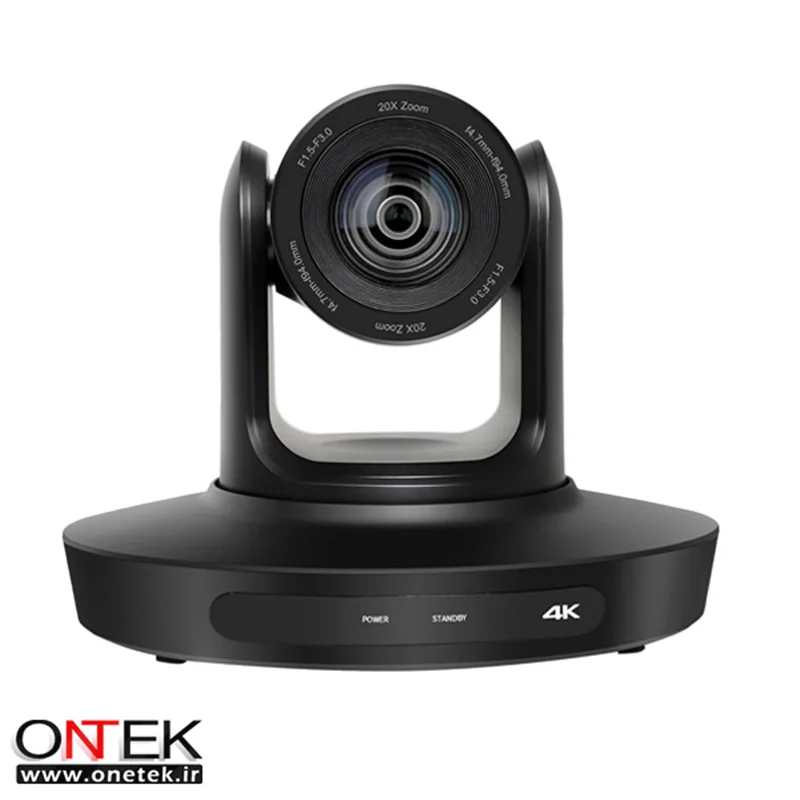

دوربین کنفرانسی کاتو ویژن مدل KT-UH45GH دارای سنسور تصویر بسیار باکیفیت Sony CMOS 1/2.8 بوده و حداکثر رزولوشن 4K 30fps را ارائه میدهد و در هر شرایط نوری عملکرد بسیار عالی دارد، این دوربین دارای بزرگنمایی 20 برابری اپتیکال بوده و لنز آن بسیار باکیفیت و با زاویه دید گسترده میباشد، دوربین دارای خروجیهای تصویر HDMI و USB3.0 و IP و ورودی صدا Line IN بوده و از انواع پروتکلهای کنترل دوربین بر بستر شبکه و سریال پشتیبانی میکند، ردیابی هوشمند سوژه و حالت کادربندی اتوماتیک از دیگر قابلیتهای این دوربین میباشد.
محصولات مرتبط
سنسور تصویر باکیفیت با حداکثر رزولوشن 4K 30fps
Applies SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, max. 4K (3840x2160) high resolution with frame rate up to 4K 30fps
عملکرد عالی در نور کم
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D&3D digital noise reduction is applied to greatly reduce image noise. Even in ultra-low light conditions, the picture can still be kept clean and clear, and the image signal-to-noise ratio is higher than 45dB
زوم 20 برابری اپتیکال
20x optical zoom, supports a horizontal viewing angle of 58.7°

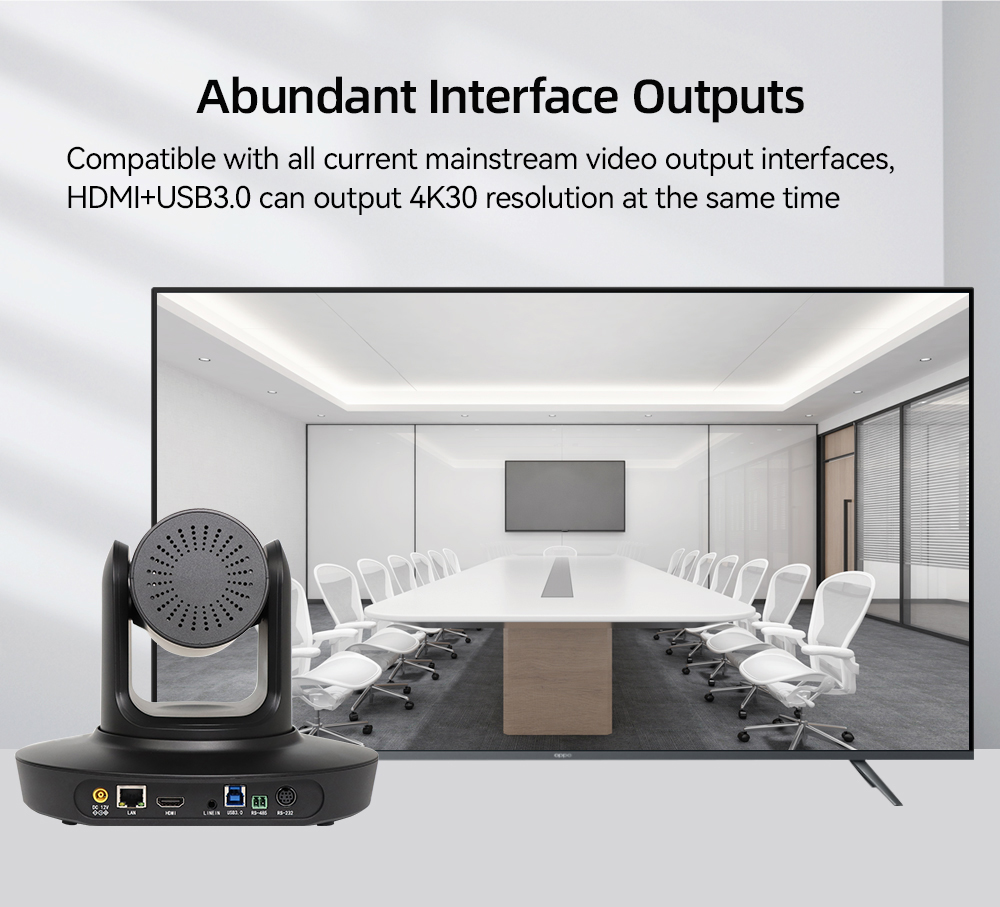

تنوع رابطهای خروجی تصویر

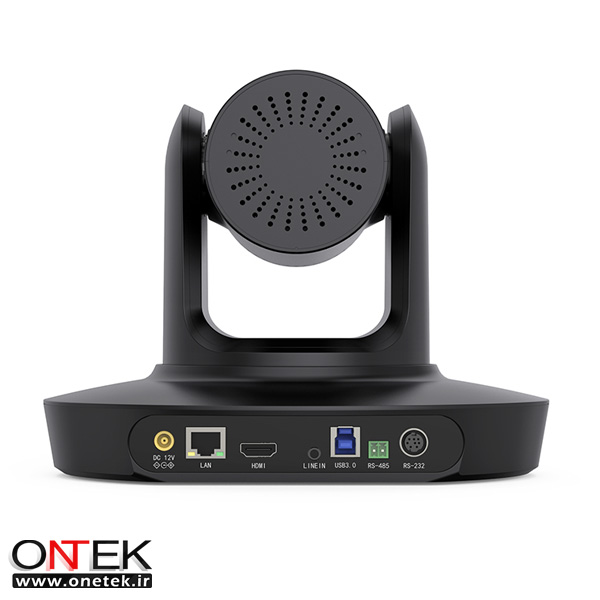

HDMI + USB3.0 + LAN multi-interface, Compatible with all current mainstream video output interfaces, Supports HDMI and USB 3.0 for synchronous output of ultra-high-definition 4K and HD 1080P IP video
حالت ردیابی هوشمند و کادربندی اتوماتیک با هوش مصنوعی
New generation AI human tracking algorithm, Upgraded to support AI intelligent tracking and automatic framing functions
پشتیبانی از انواع پروتکلهای کنترل
Support VISCA (including VISCA Over IP), PELCO P/D, Onvif multiple control protocols, support automatic identification protocol
پشتیبانی از انواع پروتکلهای تحت شبکه
Support ONVIF, SRT, RTSP, RTMP, RTMPS and other network protocols
قابلیت انتقال سیگنال مادون قرمز از طریق پورت کنترل
In addition to receiving its own infrared remote control signal, it can also receive the signal from consumer’s infrared remote control and send it to the video conference terminal through the VISCA
مشخصات فنی
Image Parameters | |
---|---|
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 | Resolution |
SONY 1/2.8" CMOS, 8.50 Megapixels, 8.29 Effective Megapixels | Image Sensor |
f=5.2mm(W)~104mm(T), F1.55~F3.13 | Lens |
20X Optical Zoom | Zoom |
Horizontal: 58.7°(W)~3.2°(T) Vertical: 32.2°(W)~1.8°(T) | View Angle |
Auto, Manual | Focus System |
1/25s ~ 1/10000s | Shutter Speed |
0.1Lux @ (F1.5, AGC ON) | Min. Illumination |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority | Exposure |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual | White Balance |
Support | Backlight Compensation |
2D&3D Digital noise reduction | Digital Noise Reduction |
50dB≥ | S/N Ratio |
Pan/Tilt | |
---|---|
Pan: ±168° / Tilt: -30°~+90° | Angle |
Pan: 1°~60°/s / Tilt: 1°~60°/s | Speed |
9preset positions by IR remote controller 200preset positions by joystick controller or PC | Preset Positions |
0.1°±10% | Preset Accuracy |
Support | Flip |
802.3af (Optional) | POE |
USB | |
---|---|
UVC 1.1 | Protocol |
Window 7 and above, MacOS, Linux, Android | Operating System |
YUY2, MJPEG | Compression |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 | Resolution |
Max.30 | Frame Rate |
Support | UVC Control |
LAN | |
---|---|
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA over IP | Protocol |
H.265 | Compression |
Main: 1920*1080 | Stream Resolution |
VBR, CBR | Bitrate Control |

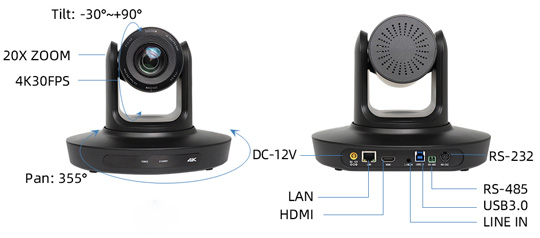

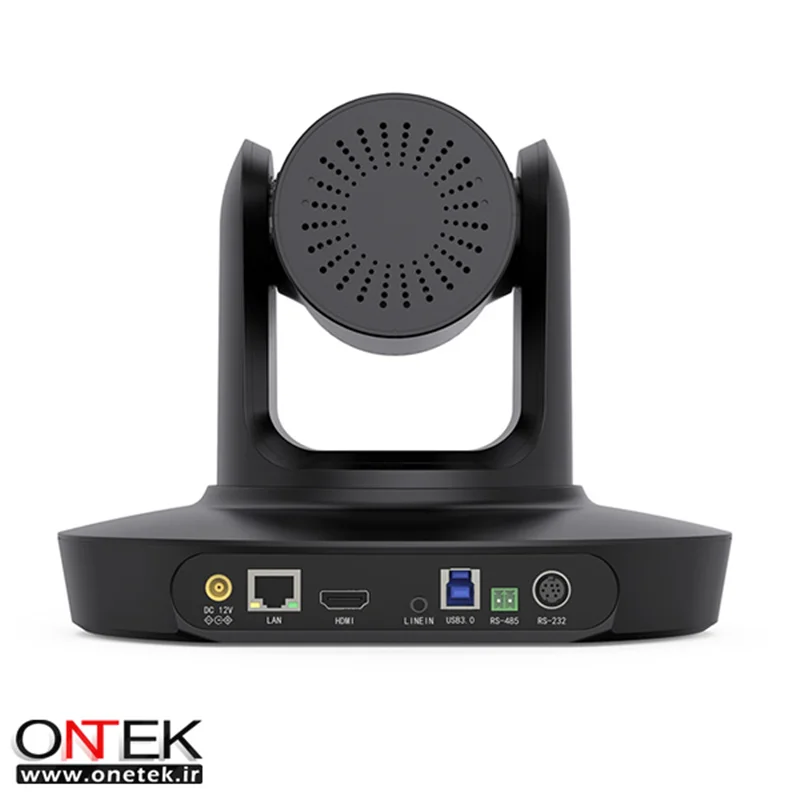

Interface | |
---|---|
1x HDMI Version 1.4 | HDMI Interface |
1x USB3.0 Type-B | USB Interface |
1x RJ45 10M/100M adaptive Ethernet port | Network Interface |
1x 3.5mm | Audio Interface |
1x RS-232 IN (Mini Din 8-Pin) up to 30 meters 1x RS-485 (Phoenix 2-Pin) up to 1200 meters | Serial Interface |
JEITA RC-5320A Type 4 | Power Interface |
General | |
---|---|
DC 12V | Input Voltage |
Max.1.5A | Input Current |
Max.18W | Power Consumption |
℃40~0 | Operating Temperature |
℃60~10- | Storage Temperature |
Black | Color |
1.2kg | Weight |

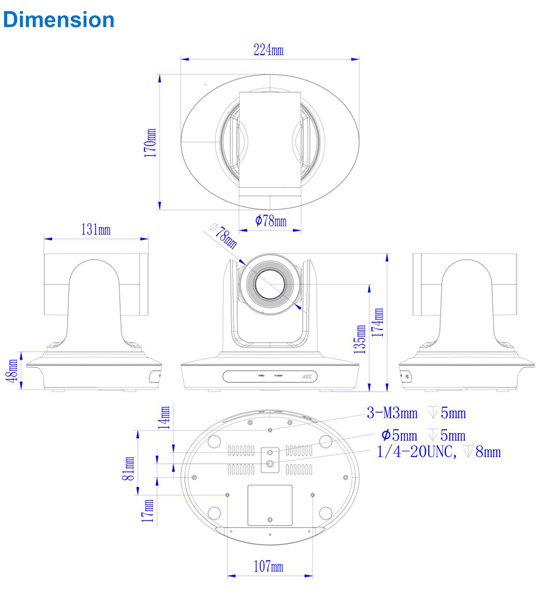

W)224*(D)170*(H)174 mm) | Dimension |
