HDMI Matrix 8x8 - MUX-808A

ماتریکس 8 در 8 HDMI مدل MUX-808A

از {{model.count}}
110,000,000 تومان
محصول مورد نظر موجود نمی‌باشد.
تعداد
نوع
  • {{value}}
کمی صبر کنید...

ساپورت رزولوشن ورودی تا 4K@60Hz با قابلیت Downscale به 1080P ، دارای خروجی صدای آنالوگ و دیجیتال جداگانه برای هر پورت (Audio Extractor) ، قابلیت تغییر EDID ، قابلیت کنترل از طریق پورت سریال و شبکه ، ساپورت صدای 7.1 کانال

ساپورت رزولوشن تا 4K@60Hz

Supports Video Resolutions up to 4K2K@50/60Hz (4:4:4)

قابلیت Downscale

Each output ports offers a 4K-> 1080p downscaling option that enables optimised distribution to a mix of 4K and HD capable devices

خروجی صدای جداگانه آنالوگ و دیجیتال برای هر پورت (Audio Extractor)

Provides Stereo Analog and Digital Audio extraction for easy connection to amplifiers for each input port

پشتیبانی از ARC

The switch provides an ARC function to enable audio from display devices to be made available on the digital and analog audio extraction ports

قابلیت تغییر EDID

Advanced EDID configuration options

قابلیت کنترل از طریق پورت سریال و شبکه

Supports RS-232, remote control, on-panel control and TCP/IP Control

ساپورت صدای 7.1 کانال

HDMI audio pass through up to 7.1CH HD Audio. Dolby Atmos, Dolby TrueHD, Dolby Digital+, DTS:X Supported

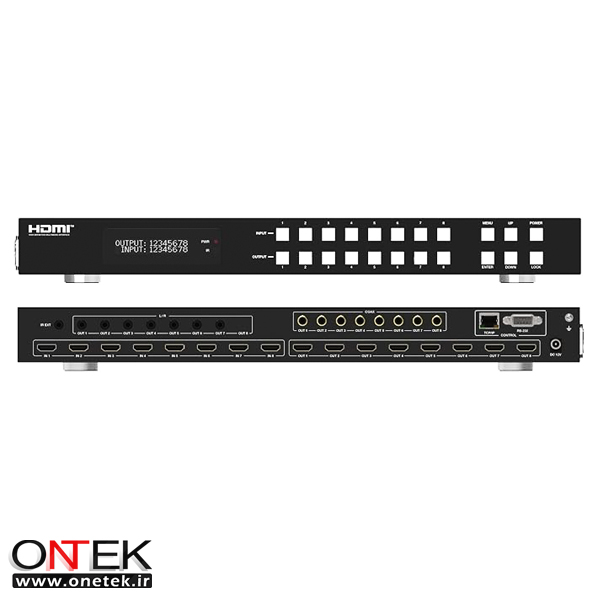

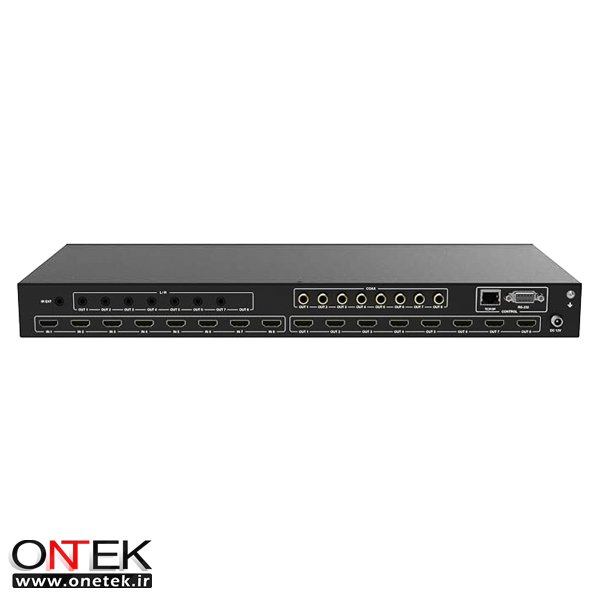

This 8x8 matrix switch lets you distribute any of 8 HDMI inputs to up to 8 displays. Matrix routing allows you to show any of the multiple inputs on any of the displays. The switch has a slim 1U design and benefits from the convenience of smartphone app control from anywhere in the building if it is connected to your LAN.

Video up to 4K@60Hz and formats including HDR10+, Dolby Vision and HLG are supported making this switch suitable for 4K / UHD content from SkyQ, Virgin UHD and 4K streaming devices. Each output ports offers a 4K-> 1080p downscaling option that enables optimised distribution to a mix of 4K and HD capable devices.

Advanced audio formats including Dolby Atmos and DTS:X are also supported. The switch provides an ARC function to enable audio from display devices to be made available on the digital and analogue audio extraction ports. Full product details available in the manual linked on this page.


Features

𑣗 Supports Video Resolutions up to 4K2K@50/60Hz (4:4:4)
𑣗 Downscaling option on each output port to accomodate a mix of 4K and older HD screens
𑣗 Advanced EDID configuration options
𑣗 Audio Return Channel (ARC) and Audio Extraction to stereo analogue and digial coaxial outputs
𑣗 CEC management of compatible input sources and displays
𑣗 Infra Red control. Web Interface Control. Front Panel Control. RS232 and TCP/IP Control. RTI and Control4 Drivers available
𑣗 Dolby Vision, HDR10+, and HLG supported
𑣗 Allows any HDMI display to view any HDMI source at any time

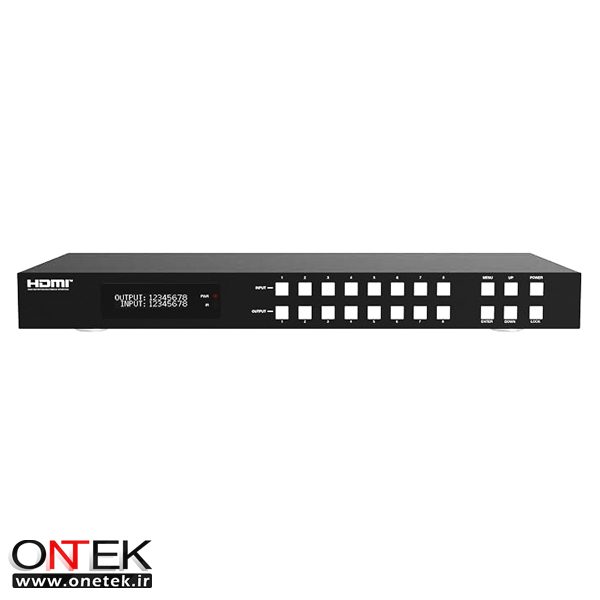

𑣗 Front-panel LCD display for status feedback


Package Contents

1x HDMI Matrix Switch
1x Power supply
1x User Manual
1x IR Remote Control
2x Mounting Brackets
1x RS232 cable

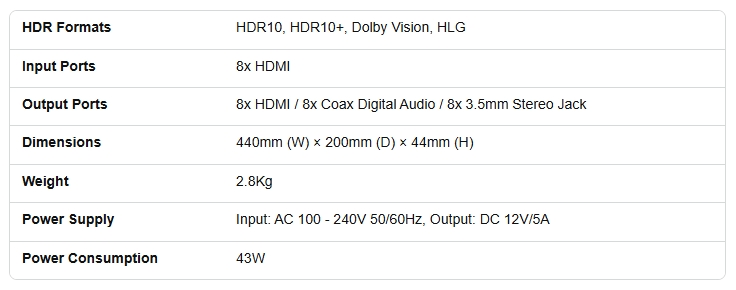

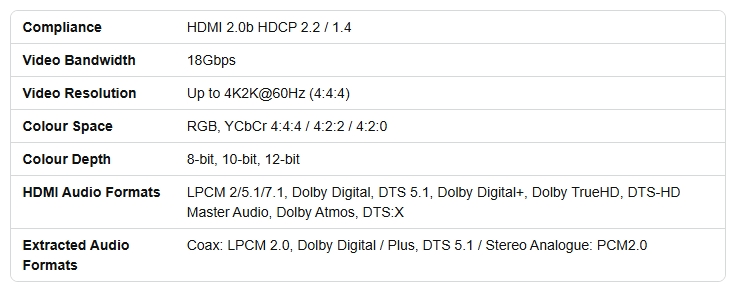

Specification


نوع دستگاه
ماتریکس HDMI
مدل
MUX-808A
رزولوشن ورودی
حداکثر 4K@60Hz
رزولوشن‌ خروجی
1080P
ورودی تصویر
8عدد HDMI 2.0
خروجی تصویر
8عدد HDMI 2.0
ورودی صدا
8عدد HDMI
خروجی صدا
8عدد HDMI
8عدد L/R 3.5mm
8عدد Coaxial
ریموت کنترل (IR)
دارد
پورت سریال (RS-232)
دارد
پورت شبکه
دارد
EDID
دارد
مالتی‌ویو
ندارد
ولتاژ ورودی
DC 12V/5A
توان مصرفی
43 وات
وزن
2.8 کیلوگرم
ابعاد
440 در 200 در 44 میلیمتر
سایر قابلیت‌ها
Downscaling option on each output port (4K to 1080)
Audio Return Channel (ARC)
CEC management of compatible input sources and displays
HDR10+, Dolby Vision and HLG are supported
HDMI audio pass through up to 7.1CH HD Audio
Dolby Atmos, Dolby TrueHD, Dolby Digital+, DTS-X Supported
Supports HDCP2.2 and HDCP1.4 Compliant
